Centre for in situ Observational Oceanography

Agulhas Warm Core Rings

As the Agulhas Current terminates downstream and retroflects (see Retroflection), it sheds vortices. These vortices are anticyclonic and are known as Agulhas rings (refer to Fig. 1). They cause a substantial unidirectional leakage of tropical and subtropical waters from the Indian Ocean to the Atlantic Ocean which could be an important component of the global thermohaline circulation (Pichevin, Nof and Lutjeharms, 1999).

Agulhas warm core rings

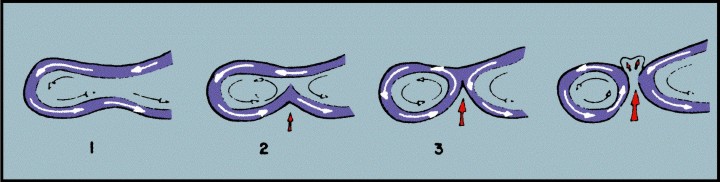

Figure 1
Sketch of the eddy shedding process at the retroflection. From Lutjeharms and van Ballegooyen (1988).

Ring shedding occurs at irregular intervals, but on average about six times per year. The diameter of an Agulhas ring is between 200 and 280 km, reaching a depth of about 1100 m. From the retroflection region they drift northwestward into the south Atlantic, travelling at a speed of approximately 5-8 km per day (Pichevin, Nof and Lutjeharms, 1999).

Agulhas warm core rings

Based on Bleck and Boudra (1986) reduced-gravity isopycnic model, the Natal pulse was simulated, and it was concluded that Natal pulses do not create Agulhas rings (as has been previously suggested). They can, however, result in the shedding of a ring or accelerate the process. The model also showed that the production of rings is intrinsically necessary, as without this production the flow force associated with the Agulhas Return Current would not be balanced (Pichevin, Nof and Lutjeharms, 1999).

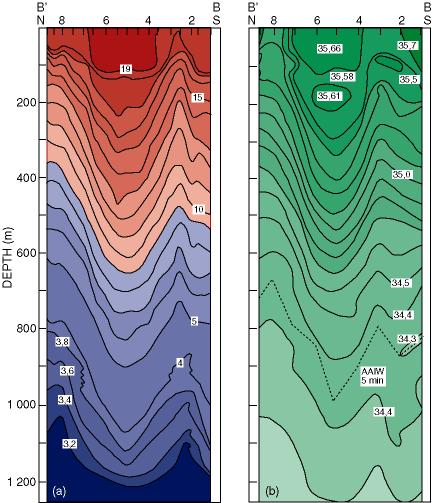

Figure 2
South to north temperature (a) and salinity (b) cross-sections of an Agulhas ring. (Diagram reproduced and altered from Duncombe Rae, 1991).

Agulhas warm core rings

Lutjeharms and van Ballegooyen (1988) showed that at the subtropical convergence, a cold wedge of Sub-Antarctic Surface Water is formed prior to almost all ring shedding events (refer to Fig. 3). This wedge penetrates through the retroflection loop and separates the newly-formed Agulhas ring from the retroflection loop.

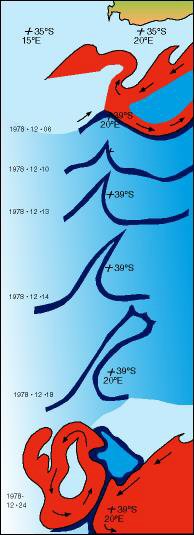

Figure 3
Sketch showing the rapid development and penetration of a cold wedge of Subantarctic Surface Water resulting in the spawning and separation of an Agulhas ring. This process was over a period of less than three weeks in December 1978. (Diagram reproduced and altered from L├╝tjeharms and van Ballegooyen, 1988).


Pichevin, T., Nof, D. and Lutjeharms, J. R. E. (1999). Why are there Agulhas rings? Journal of Physical Oceanography, 29, 693-707.


  • Boebela, O., Lutjeharms, J. R. E., Schmid, C., Zenk, W., Rossby, T. and Barron, C. (2003). The Cape Cauldron: a regime of turbulent inter-ocean exchange. Deep-Sea Research II, 50, 57-86.
  • Duncombe Rae, C. M. (1991). Agulhas retroflection rings in the South Atlantic Ocean: an overview. South African Journal of Marine Science, 11, 327-344.
  • Duncombe Rae, C. M., Shillington, F. A., Agenbag, J. J., Taunton-Clark, J. and Gr├╝ndlingh, M. L. (1992). An agulhas ring in the South Atlantic ocean and its interaction with the Benguela upwelling frontal system. Deep Sea Research Part A. Oceanographic Research Papers, 39, (11-12) 2009-2027.
  • Feron, R. C. V., de Ruijter, W. P. M. and Oskam, D. (1992). Ring shedding in the Agulhas Current System. Journal of Geophysical Research, 97, 9467-9477.
  • Lutjeharms, J. R. E., Catzel, R. and Valentine, H. R. (1989). Eddies and other boundary phenomena of the Agulhas Current. Continental Shelf Research, 9 (7), 597-616.
  • Lutjeharms, J. R. E. and van Ballegooyen, R. C. (1988). The retroflection of the Agulhas Current. Journal of physical Oceanography, 18 (11), 1570-1583.
  • Schmid, C., Boebel, O., Zenk, W., Lutjeharms, J. R. E., Garzoli, S. L., Richardson, P. L. and Barron, C. (2003). Early evolution of an Agulhas Ring. Deep-Sea Research II, 50, 141-166.
  • Schouten, M. W., de Ruijter, P. M., van Leeuwen, P. J. and Lutjeharms, J. R. E. (2000). Translation, decay and splitting of Agulhas rings in the southeastern Atlantic Ocean. Journal of Geophysical Research, 105 (C9), 21913-21925.
  • Schouten, M. W., de Ruijter, W. P. M., van Leeuwen, P. J. and Ridderinkhof, H. (2003). Eddies and variability in the Mozambique Channel. Deep Sea Research Part II: Topical Studies in Oceanography, 50, (12-13), 1987-2003.
  • Tomczak, M. and Godfrey, J.S. (1994). Regional Oceanography. Pergamon Press, Oxford.
